Metal Materials Catalog
Materials Overwiew / Metal Materials
Here you will find a list of all metal materials, as well as maximum dimensions of the parts.
All sizes below are listed as thickness and maximum part size.

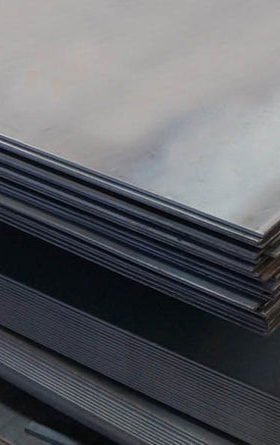

Carbon Steel
Plain carbon steel
| Thickness | Maximum part size |
|---|
| 0.50 mm | 980 x 1980 mm |
| 0.60 mm | 1240 x 2480 mm |
| 0.80 mm | 1240 x 2480 mm |
| 1.00 mm | 1240 x 2480 mm |
| 1.20 mm | 1240 x 2480 mm |
| 1.50 mm | 1240 x 2480 mm |
| 2.00 mm | 1480 x 2980 mm |
| 2.50 mm | 1480 x 2980 mm |
| 3.00 mm | 1480 x 2980 mm |
| 4.00 mm | 1480 x 2980 mm |
| 5.00 mm | 1480 x 2980 mm |
| 6.00 mm | 1480 x 2980 mm |
| 8.00 mm | 1480 x 2980 mm |
| 10.0 mm | 1480 x 2980 mm |
| 12.0 mm | 1480 x 2980 mm |
| 14.0 mm | 1480 x 2980 mm |
| 16.0 mm | 1480 x 2980 mm |
Galvanized carbon steel
| Thickness | Maximum part size |
|---|
| 0.50 mm | 980 x 1980 mm |
| 1.00 mm | 980 x 1980 mm |
| 1.50 mm | 980 x 1980 mm |
| 2.00 mm | 980 x 1980 mm |
1.0330 / DC01 cold rolled, oiled
| Thickness | Maximum part size |
|---|
| 0.50 mm | 980 x 1980 mm |
| 0.60 mm | 1240 x 2480 mm |
| 0.80 mm | 1240 x 2480 mm |
| 1.00 mm | 1240 x 2480 mm |
| 1.20 mm | 1240 x 2480 mm |
| 1.50 mm | 1240 x 2480 mm |
| 2.00 mm | 1240 x 2480 mm |
1.0332 / DD11 hot rolled
| Thickness | Maximum part size |
|---|
| 2.00 mm | 1480 x 2980 mm |
| 2.50 mm | 1480 x 2980 mm |
| 3.00 mm | 1480 x 2980 mm |
| 4.00 mm | 1480 x 2980 mm |
| 5.00 mm | 1480 x 2980 mm |
| 6.00 mm | 1480 x 2980 mm |
| 8.00 mm | 1480 x 2980 mm |
| 10.0 mm | 1480 x 2980 mm |
1.0038 / S235JR hot rolled
| Thickness | Maximum part size |
|---|
| 2.00 mm | 1480 x 2980 mm |
| 2.50 mm | 1480 x 2980 mm |
| 3.00 mm | 1480 x 2980 mm |
| 4.00 mm | 1480 x 2980 mm |
| 5.00 mm | 1480 x 2980 mm |
| 6.00 mm | 1480 x 2980 mm |
| 8.00 mm | 1480 x 2980 mm |
| 10.0 mm | 1480 x 2980 mm |
| 12.0 mm | 1480 x 2980 mm |
| 14.0 mm | 1480 x 2980 mm |
| 16.0 mm | 1480 x 2980 mm |

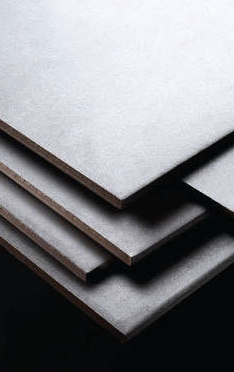

Stainless Steel
Generic stainless steel
| Thickness | Maximum part size |
|---|
| 0.50 mm | 1240 x 2480 mm |
| 0.80 mm | 1240 x 2480 mm |
| 1.00 mm | 1480 x 2980 mm |
| 1.20 mm | 1480 x 2980 mm |
| 1.50 mm | 1480 x 2980 mm |
| 2.00 mm | 1480 x 2980 mm |
| 2.50 mm | 1240 x 2480 mm |
| 3.00 mm | 1480 x 2980 mm |
| 4.00 mm | 1480 x 2980 mm |
| 5.00 mm | 1480 x 2980 mm |
| 6.00 mm | 1480 x 2980 mm |
| 8.00 mm | 1480 x 2980 mm |
1.4301 / 1.4306 / 1.4307 / 304 / 304L brushed
| Thickness | Maximum part size |
|---|
| 0.50 mm | 1240 x 2480 mm |
| 0.80 mm | 1240 x 2480 mm |
| 1.00 mm | 1480 x 2980 mm |
| 1.20 mm | 1480 x 2980 mm |
| 1.50 mm | 1480 x 2980 mm |
| 2.00 mm | 1480 x 2980 mm |
| 2.50 mm | 1240 x 2480 mm |
| 3.00 mm | 1480 x 2980 mm |
| 4.00 mm | 1480 x 2980 mm |
| 5.00 mm | 1480 x 2980 mm |
| 6.00 mm | 1480 x 2980 mm |
| 8.00 mm | 1480 x 2980 mm |
1.4301 / 1.4306 / 1.4307 / 304 / 304L ground + foil
| Thickness | Maximum part size |
|---|
| 0.50 mm | 1240 x 2480 mm |
| 0.80 mm | 1240 x 2480 mm |
| 1.00 mm | 1480 x 2980 mm |
| 1.20 mm | 1480 x 2980 mm |
| 1.50 mm | 1480 x 2980 mm |
| 2.00 mm | 1480 x 2980 mm |
1.4301 / 1.4306 / 1.4307 / 304 / 304L hot rolled
| Thickness | Maximum part size |
|---|
| 2.00 mm | 1480 x 2980 mm |
| 2.50 mm | 1240 x 2480 mm |
| 3.00 mm | 1480 x 2980 mm |
| 4.00 mm | 1480 x 2980 mm |
| 5.00 mm | 1480 x 2980 mm |
| 6.00 mm | 1480 x 2980 mm |
| 8.00 mm | 1480 x 2980 mm |

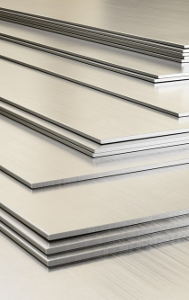

Aluminum Alloys
Generic aluminum
| Thickness | Maximum part size |
|---|
| 0.50 mm | 980 x 1980 mm |
| 1.00 mm | 1240 x 2480 mm |
| 1.50 mm | 1240 x 2480 mm |
| 2.00 mm | 1480 x 2980 mm |
| 3.00 mm | 1480 x 2980 mm |
| 4.00 mm | 1480 x 2980 mm |
| 5.00 mm | 1480 x 2980 mm |
| 6.00 mm | 1480 x 2980 mm |
Al99.9 EN AW-1050A H14/H24
| Thickness | Maximum part size |
|---|
| 0.50 mm | 980 x 1980 mm |
| 1.00 mm | 1240 x 2480 mm |
| 1.50 mm | 1240 x 2480 mm |
| 2.00 mm | 1480 x 2980 mm |
| 3.00 mm | 1480 x 2980 mm |
| 4.00 mm | 1480 x 2980 mm |
| 5.00 mm | 1480 x 2980 mm |
| 6.00 mm | 1480 x 2980 mm |
AlMg3 EN AW-5754 H14/H24
| Thickness | Maximum part size |
|---|
| 0.50 mm | 980 x 1980 mm |
| 1.00 mm | 1240 x 2480 mm |
| 1.50 mm | 1240 x 2480 mm |
| 2.00 mm | 1480 x 2980 mm |
| 3.00 mm | 1480 x 2980 mm |
| 4.00 mm | 1480 x 2980 mm |
| 5.00 mm | 1480 x 2980 mm |
| 6.00 mm | 1480 x 2980 mm |

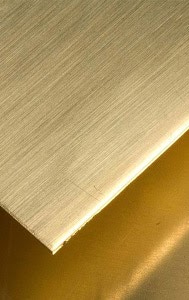

Brass and Copper Alloys
Generic brass
| Thickness | Maximum part size |
|---|
| 1.00 mm | 940 x 1980 mm |
| 1.50 mm | 940 x 1980 mm |
| 2.00 mm | 940 x 1980 mm |
| 3.00 mm | 940 x 1980 mm |
| 4.00 mm | 940 x 1980 mm |
Generic copper
| Thickness | Maximum part size |
|---|
| 1.00 mm | 940 x 1980 mm |
| 1.50 mm | 940 x 1980 mm |
| 2.00 mm | 940 x 1980 mm |
| 3.00 mm | 940 x 1980 mm |
| 4.00 mm | 940 x 1980 mm |
2.0060 / CW004A electrical copper
| Thickness | Maximum part size |
|---|
| 1.00 mm | 940 x 1980 mm |
| 1.50 mm | 940 x 1980 mm |
| 2.00 mm | 940 x 1980 mm |
| 3.00 mm | 940 x 1980 mm |
| 4.00 mm | 940 x 1980 mm |
If you need help selecting the correct material for a part or preparing a DXF file for upload, see the Contact page or the design-guidance pages.
