Non-Metal Materials Catalog
Materials Overwiew / Non-metal Materials
Here you will find a list of all non-metal materials, as well as maximum dimensions of the parts.
All sizes below are listed as thickness and maximum part size.

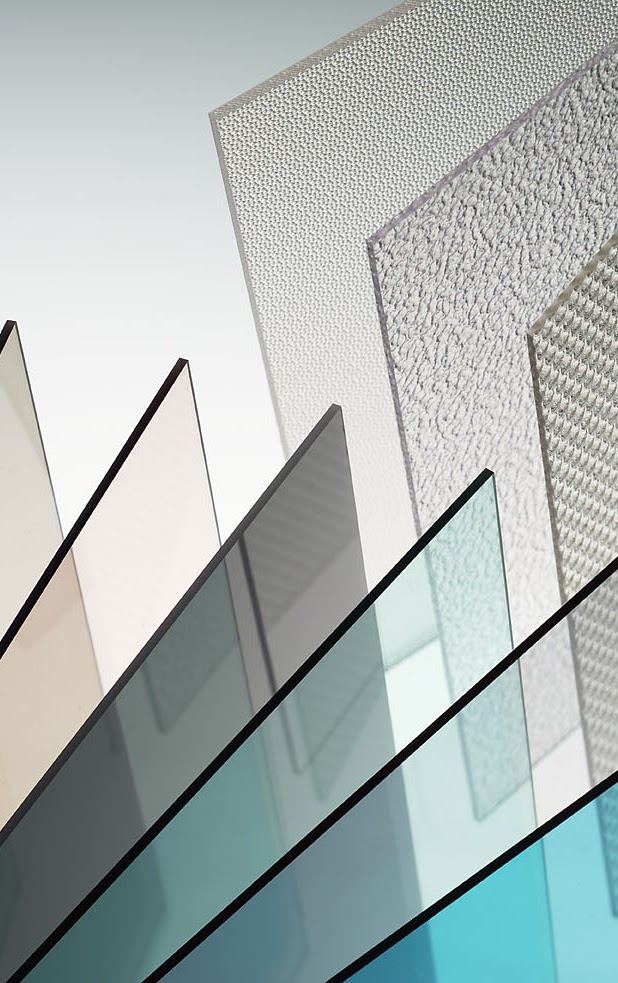

Technical Plastics
Polyamide (PA / PA6 / PA66)
| Thickness | Maximum part size |
|---|
| 1.00 mm | 940 x 980 mm |
| 1.50 mm | 940 x 980 mm |
| 2.00 mm | 940 x 980 mm |
| 3.00 mm | 940 x 980 mm |
| 4.00 mm | 940 x 980 mm |
Polyamide 6 (PA 6)
| Thickness | Maximum part size |
|---|
| 1.50 mm | 940 x 980 mm |
| 2.00 mm | 940 x 980 mm |
| 3.00 mm | 940 x 980 mm |
| 4.00 mm | 940 x 980 mm |
| 5.00 mm | 940 x 980 mm |
Polyamide 66 (PA 66)
| Thickness | Maximum part size |
|---|
| 1.00 mm | 940 x 980 mm |
| 1.50 mm | 940 x 980 mm |
| 2.00 mm | 940 x 980 mm |
| 3.00 mm | 940 x 980 mm |
| 4.00 mm | 940 x 980 mm |
Transparent Acrylic Glass (PMMA)
| Thickness | Maximum part size |
|---|
| 1.00 mm | 940 x 1580 mm |
| 1.50 mm | 940 x 1580 mm |
| 2.00 mm | 940 x 1580 mm |
| 3.00 mm | 940 x 1580 mm |
| 4.00 mm | 940 x 1580 mm |
Transparent Polycarbonate (PC)
| Thickness | Maximum part size |
|---|
| 1.00 mm | 940 x 1580 mm |
| 1.50 mm | 940 x 1580 mm |
| 2.00 mm | 940 x 1580 mm |
| 3.00 mm | 940 x 1580 mm |
| 4.00 mm | 940 x 1580 mm |
Technical Rubber
Standard Rubber SBR
| Thickness | Maximum part size |
|---|
| 1.00 mm | 940 x 1180 mm |
| 2.00 mm | 940 x 1180 mm |
| 3.00 mm | 940 x 1180 mm |
| 4.00 mm | 940 x 1180 mm |
Oil-Resistant Rubber NBR
| Thickness | Maximum part size |
|---|
| 1.00 mm | 940 x 1180 mm |
| 2.00 mm | 940 x 1180 mm |
| 3.00 mm | 940 x 1180 mm |
| 4.00 mm | 940 x 1180 mm |
Silicone Rubber
| Thickness | Maximum part size |
|---|
| 1.00 mm | 940 x 1180 mm |
| 2.00 mm | 940 x 1180 mm |
| 3.00 mm | 940 x 1180 mm |
| 4.00 mm | 940 x 1180 mm |

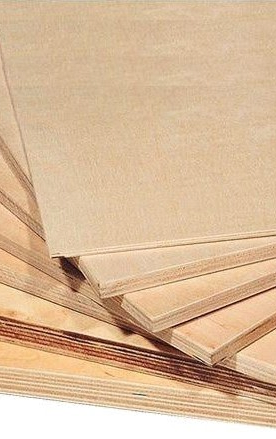

Plywood / MDF
Plywood
| Thickness | Maximum part size |
|---|
| 3.00 mm | 900 x 1580 mm |
| 6.00 mm | 900 x 1580 mm |
MDF Veneer
| Thickness | Maximum part size |
|---|
| 3.00 mm | 900 x 1580 mm |
| 6.00 mm | 900 x 1580 mm |
If you need help selecting the correct non-metal material or preparing a DXF file for upload, see the Contact page and the other material and design-guidance pages.
