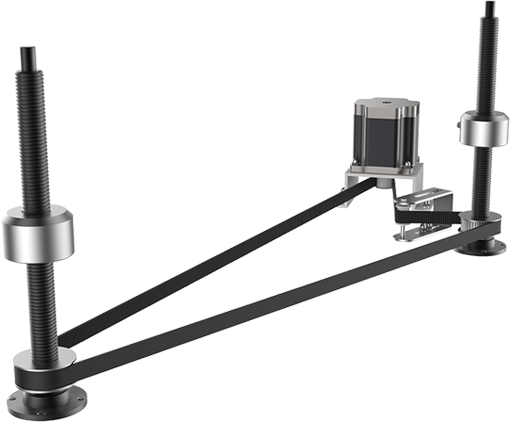

Electronic lifting
- The machine can automatically adjust the worktable to meet cutting requirements for different thicknesses.
- The lifting height can reach 20 cm.
Machine park
CO2 Laser CO2-1610NK
Laser cutting machine for non-metals with a 1600 x 1000 mm working area and 130W laser power.
CO2 laser
Laser machine for cutting and engraving non-metals
The CO2-1610NK model is a laser machine for cutting sheet material from non-metals. It allows the laser source to be customized, reaching power up to 150 W.
This machine configuration is the right choice when selecting production capacity for mechanical engineering with a focus on the food industry, agriculture, the textile industry, construction, and more.
CO2 laser technology guarantees uncompromising precision, production cost efficiency, and high productivity.
Structure and components
Key features

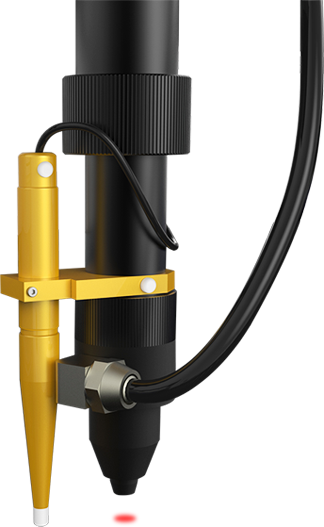

Automatic focusing
- No manual intervention is needed when focusing the laser head, improving precision and productivity.

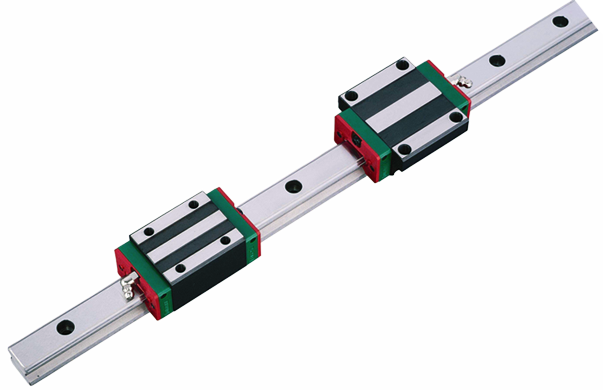

Hiwin guide rail system from Taiwan
- The Hiwin linear guide rail system provides high positioning accuracy, limited wear, and long-term operation.

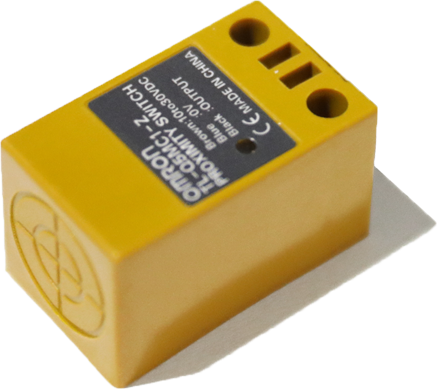

OMRON electronic components from Japan
- OMRON electronic components support stable machine operation.
Wi-Fi control
- Remote control, setup, diagnostics, detection, and troubleshooting are possible.
- One computer can control several machines.
Optical lenses from the USA
- High-quality gold-plated aspherical lenses from leading US manufacturers.
- Proven 14% improvement in beam transmission compared with competing products on the optical components market.
Leadshine stepper motor
- Lower noise, low vibration, smoother motion, higher torque, greater acceleration, and higher precision.
Efficient fan for optimal cooling
- The fan starts with one button and can be controlled independently.

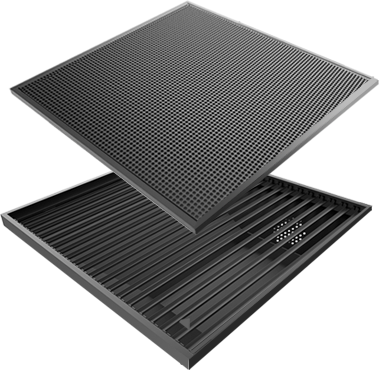

Dual work platform
- Combined dual platform for cutting and engraving.

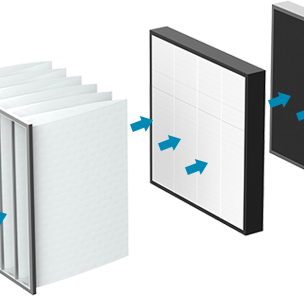

High-efficiency air filters
- The laser can be used directly indoors without concern about harmful contamination of the working environment.
- Triple filtration: HEPA filtration of particles down to 0.03UM and an activated carbon absorption system.
Technical parameters
Technical parameters
CO2 Laser CO2-1610NK
- Machine model
- CO2-1610NK
- Laser type
- CO2 laser
- Laser power
- 130W
- Working area
- 1600 mm x 1000 mm
- Cutting speed
- 0-36000 mm/min
- Working speed
- Adjustable
- Positioning accuracy
- ±0.1 mm
- Control system
- DSP control system in USB mode
- Cooling mode
- Constant water cooling
- Operating voltage
- AC220V ±5% / 50HZ
- Supported graphics format
- AI BMP PLT DXF DST
- Operating temperature
- 0°C-40°C
- Working humidity
- No condensation
- Gross power
- ≤ 2000W

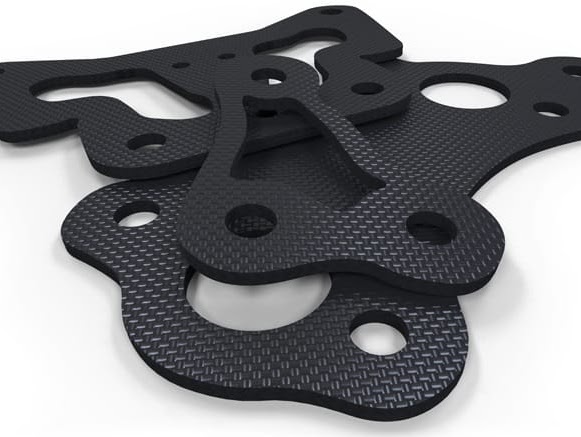

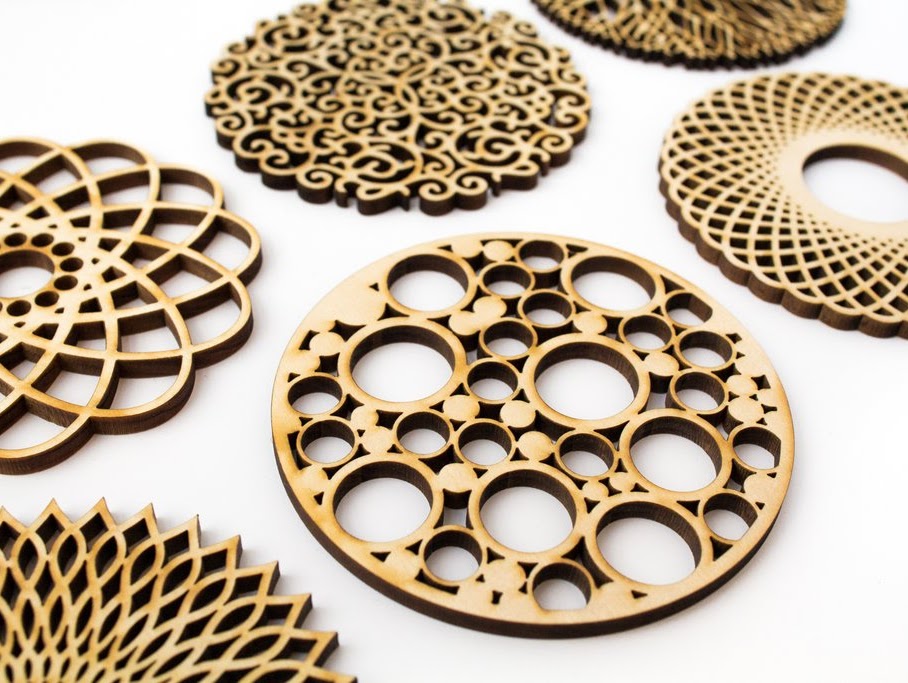

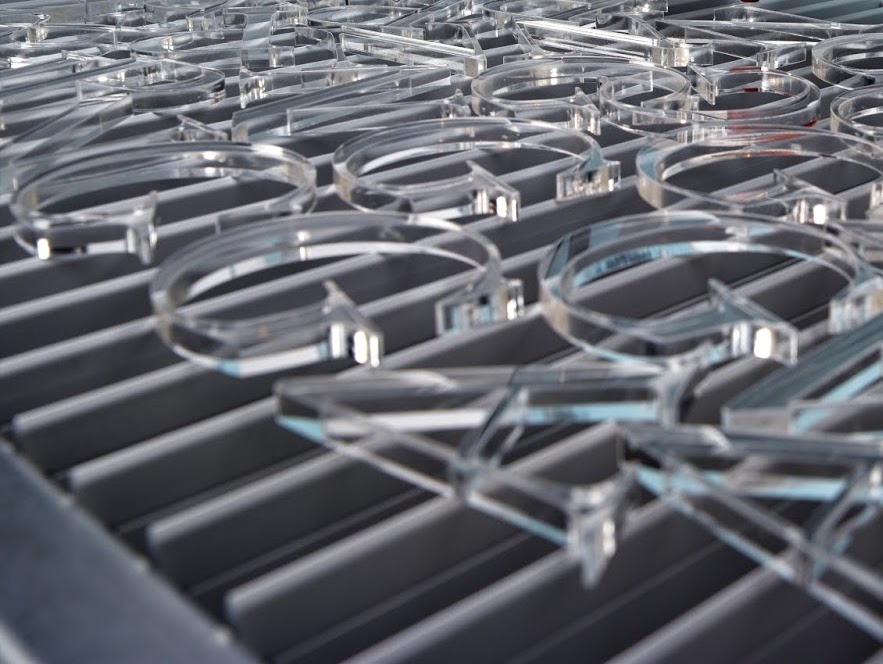

Examples
Industrial applications and processable materials
The CO2-1610NK model is a laser machine for cutting sheet material from non-metals. It allows the laser source to be customized, reaching power up to 150 W. This machine configuration is the right choice when selecting production capacity for mechanical engineering with a focus on the food industry, agriculture, the textile industry, construction, and more. CO2 laser technology guarantees uncompromising precision, production cost efficiency, and high productivity.
This technology is suitable for processing wood, jade, marble, acrylic glass, crystal, plastic, clothing, paper, leather, rubber, ceramics, glass, and other non-metallic materials.
