Hydraulic Press Brake PB-100T/3200NK

Sheet metal bending machine with 100 tons of press force over a 3.2 m working length.

Hydraulic press brake

Machine for precise sheet metal bending

The PB-100T/3200NK model is a hydraulic press brake for sheet metal bending. It provides 100 tons of press force over a 3.2 m length.

This machine configuration is the right choice when selecting production capacity for mechanical engineering with a focus on agriculture, the textile industry, the food industry, construction, and more.

Bending with a hydraulic press brake guarantees uncompromising precision, production cost efficiency, and high productivity.

Structure and components

Key features

DA66 CNC control system

17" display with 3D visualization of the bending process and programming via a 2D touchscreen.
The 42CrMo tool set provides higher accuracy and longer service life.
The German Rexroth hydraulic valve block, pump, and valves provide trouble-free operation.
Adaptive laser bending increases safety and accuracy.
High-speed HIWIN linear guides for smoother operation.
DELTA servo motors and drives.

Technical parameters

Hydraulic Press Brake PB-100T/3200NK

Machine model: PB-100T/3200NK
Press brake type: Hydraulic
Press force: 100 t
Working length: 3200 mm
Working speed: Adjustable
Positioning accuracy: ±0.1 mm
Control system: DA66 CNC
Operating voltage: AC 380V ±5% / 50HZ
Operating temperature: 0°C-40°C

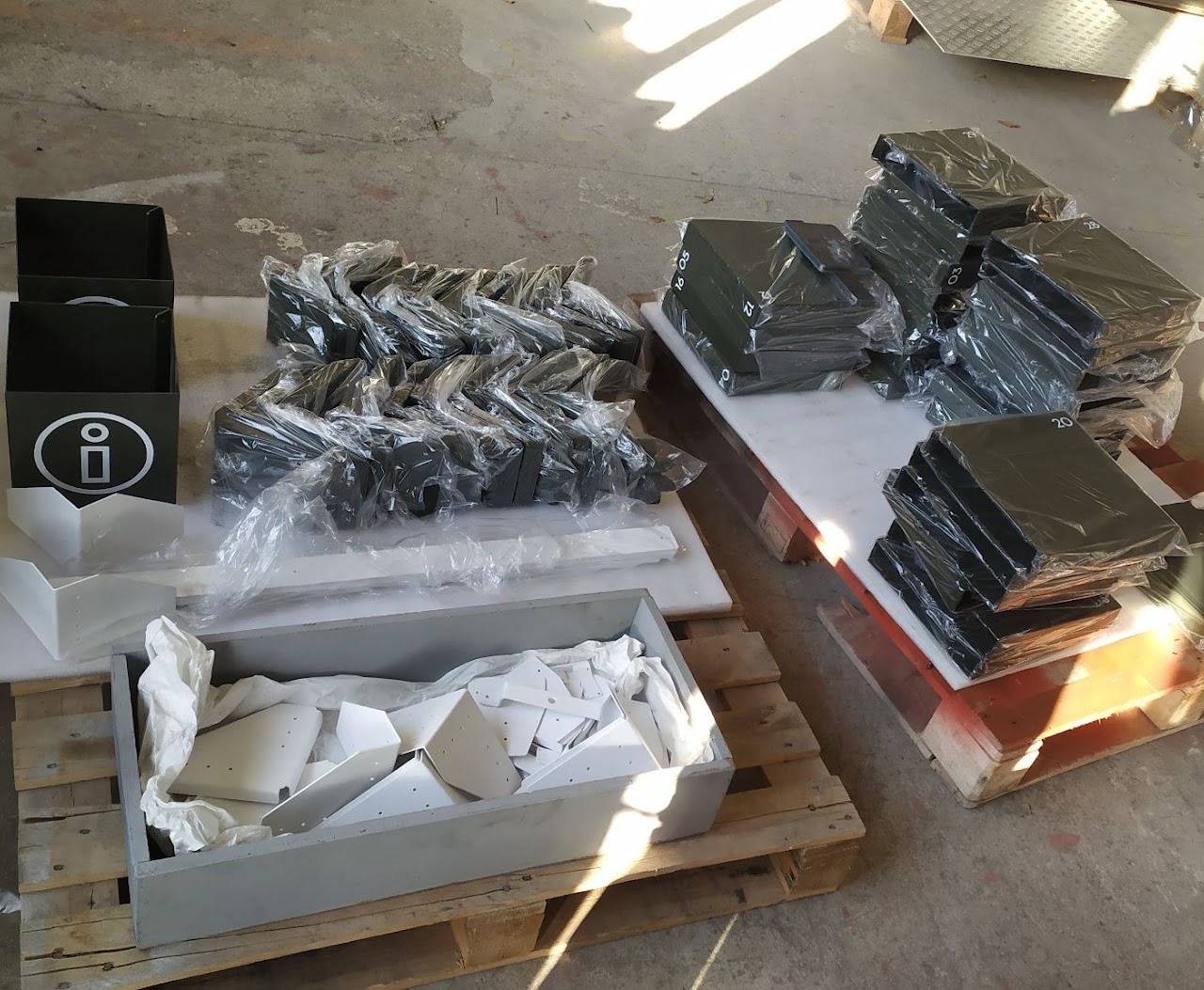

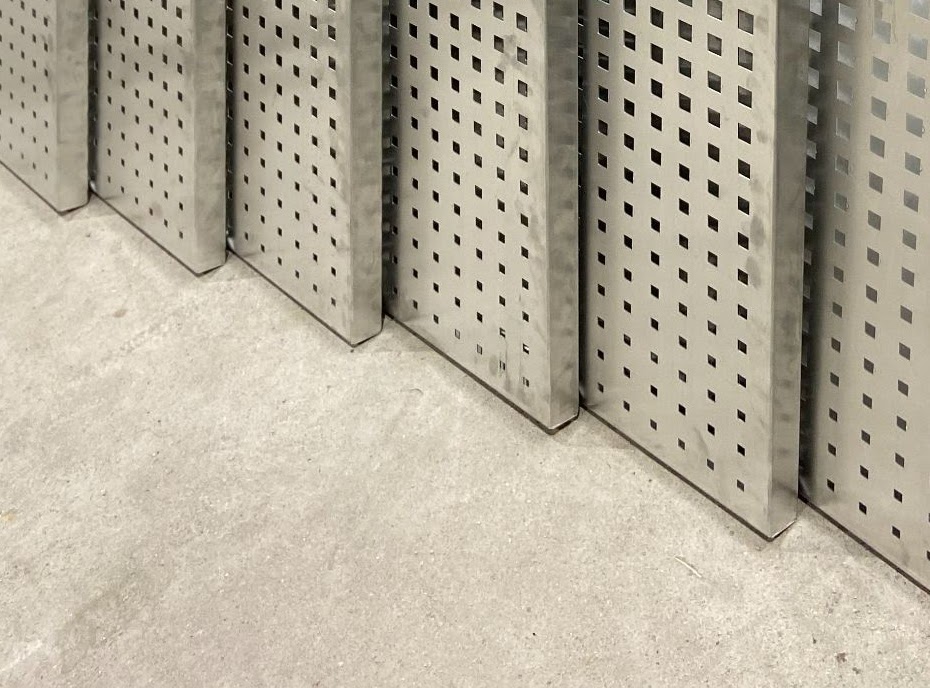

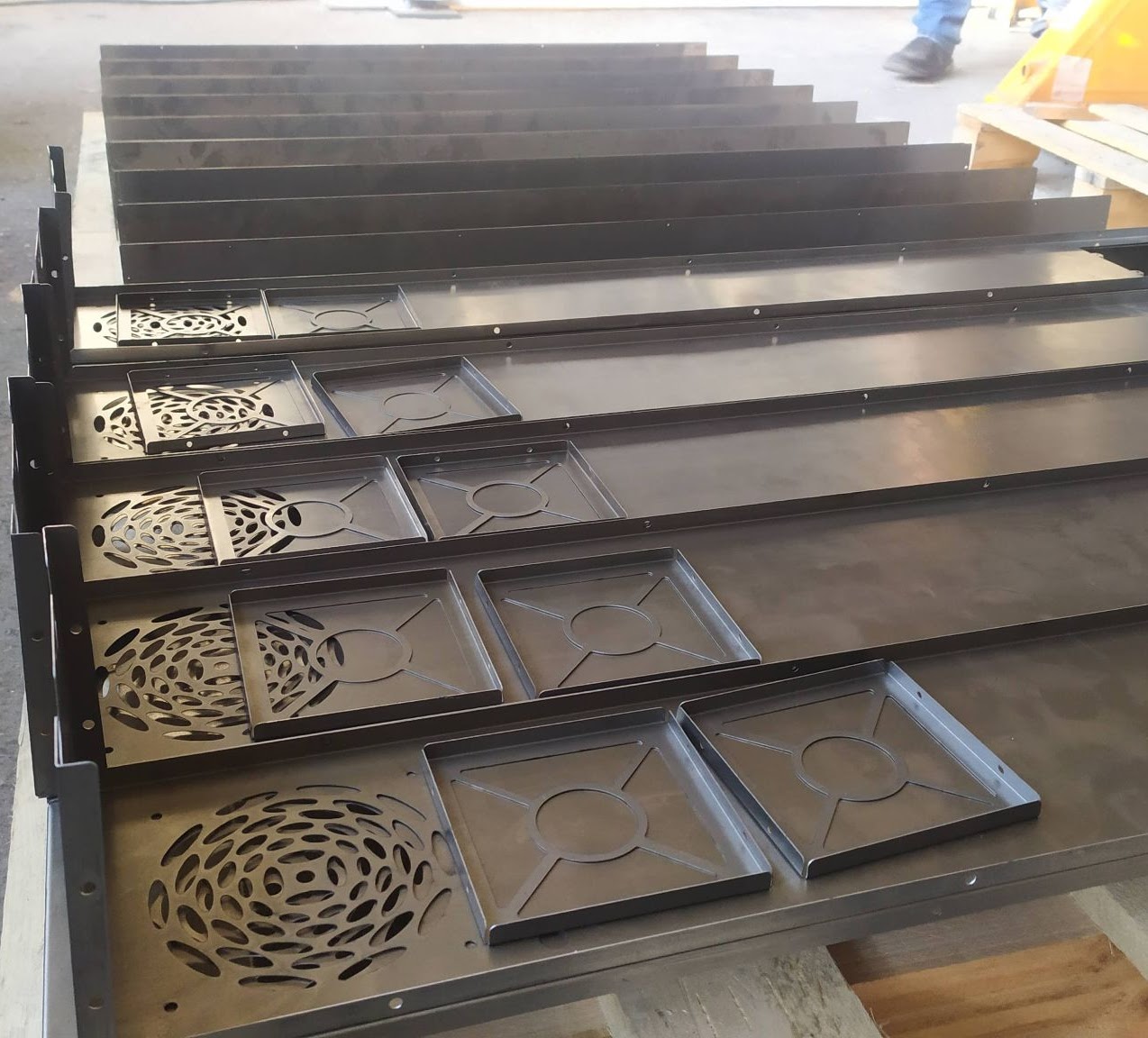

Examples

Industrial applications

The PB-100T/3200NK model is a hydraulic press brake for sheet metal bending. It provides 100 tons of press force over a 3.2 m length. This machine configuration is the right choice when selecting production capacity for mechanical engineering with a focus on agriculture, the textile industry, the food industry, construction, and more. Bending with a hydraulic press brake guarantees uncompromising precision, production cost efficiency, and high productivity.

This technology is suitable for processing stainless steel, carbon steel, silicon steel, aluminum and aluminum alloys, titanium alloys, galvanized steel, copper, and other metals.

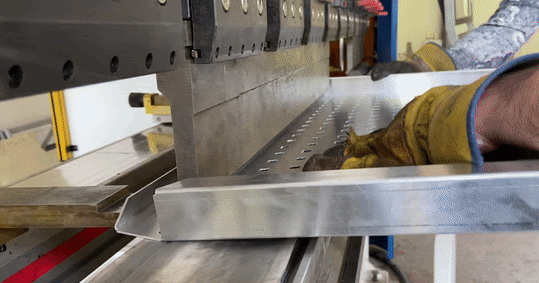

Industrial applications of a hydraulic press brake
