Fiber Laser FL-3015NK

Laser cutting machine for metal with a 3000 x 1500 mm working area and an IPG 2000W laser source.

Fiber laser

Laser machine for cutting sheet metal

The FL-3015NK model is a laser machine for cutting sheet metal. It allows the laser source to be customized, reaching power up to 8000 W.

This machine configuration is the right choice when selecting production capacity for mechanical engineering with a focus on the food industry, agriculture, the textile industry, construction, and more.

Fiber laser technology is suitable for processing stainless steel, carbon steel, silicon steel, aluminum and aluminum alloys, titanium alloys, galvanized steel, copper, and other metals.

Structure and components

Key features

Safe working environment

Enclosed design with a protective function for the machine and operator.
Observation window made from material that protects the eyes according to the European CE standard.
Gases generated during cutting are filtered, keeping the environment protected.
The machine weight is 7500 kg.

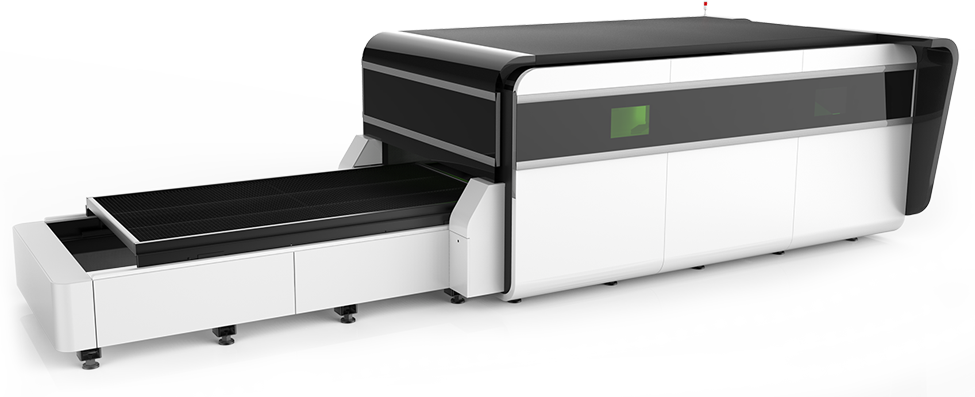

Sheet material feeding platform

Moving exchange platform between the cut sheet and the next metal sheet.
Automates the workflow without loss of useful machine operation.
Exchange of the two metal sheets within 15 seconds.

Third-generation load-bearing beam made from aerospace aluminum alloy

The main part of the laser machine is made from material meeting aerospace industry standards.
Aerospace aluminum provides long-term durability, low weight, corrosion resistance, oxidation resistance, and low density that increases processing speed.

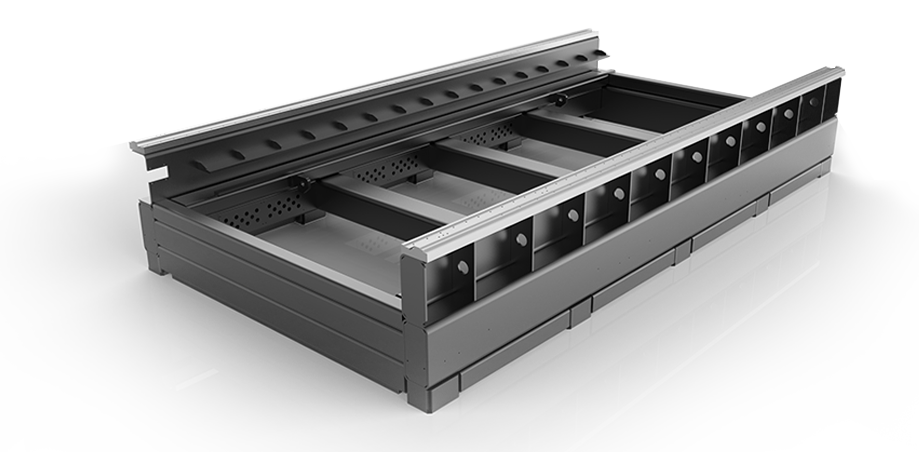

Segmented welded machine bed

The inner structure of the machine bed resembles a honeycomb structure formed from welded rectangular tubes.
Reinforcement elements increase the strength, durability, and stability of the supporting structure.
Rectangular tube wall profile thickness: 10 mm. Main supporting structure: 4500 kg.

Automatic focusing

The software automatically adjusts the focusing lens for piercing and cutting parts from materials of different thicknesses.
Adjustment range from -10 mm to +10 mm and precision of 0.01 mm when processing sheet material from 0 to 20 mm thick.
Water cooling of the collimating and focusing lenses reduces temperature and extends the cutting head life.

Drive and precision

The NIKO laser machine uses German Atlanta mechanics, Japanese Yaskawa motors, and a German Neugart gearbox.
Positioning accuracy can be 0.02 mm, cutting acceleration is 1.5G, and service life exceeds 10 years.

Technical parameters

Fiber Laser FL-3015NK

Machine model: FL-3015NK
Laser type: Fiber laser
Laser power: IPG 2000W
Dimensions: 8150 x 2825 x 2125 mm
Working area: 3000 mm x 1500 mm
Repeat positioning accuracy: ± 0.02 mm
Maximum speed: 120 m/min
Maximum acceleration: 1.5G
Supply voltage and frequency: 380V / 50Hz

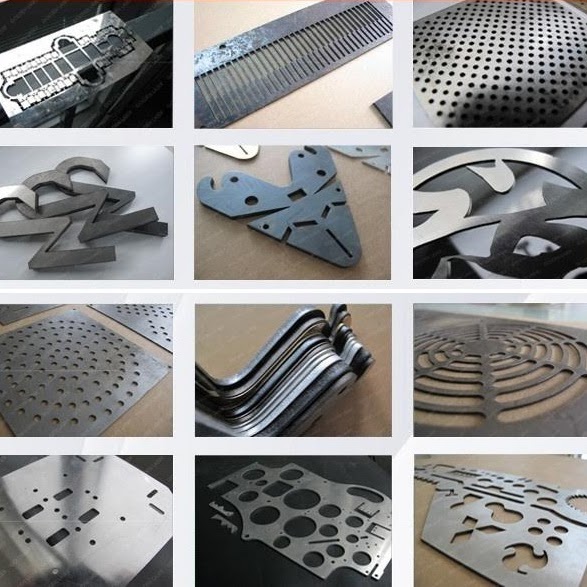

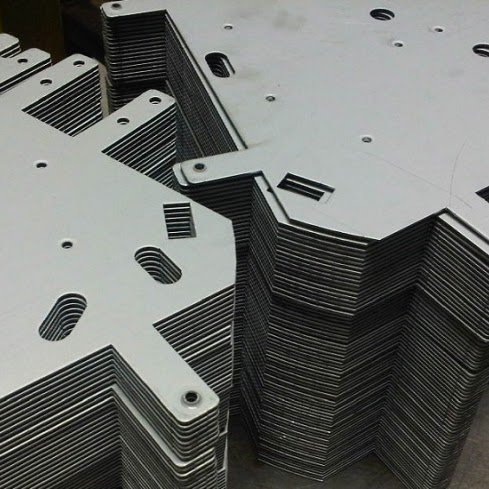

Industrial applications

The FL-3015NK model is a laser machine for cutting sheet metal. It allows the laser source to be customized, reaching power up to 8000 W. This machine configuration is the right choice when selecting production capacity for mechanical engineering with a focus on the food industry, agriculture, the textile industry, construction, and more. Fiber laser technology guarantees uncompromising precision, production cost efficiency, and high productivity.

This technology is suitable for processing stainless steel, carbon steel, silicon steel, aluminum and aluminum alloys, titanium alloys, galvanized steel, copper, and other metals.

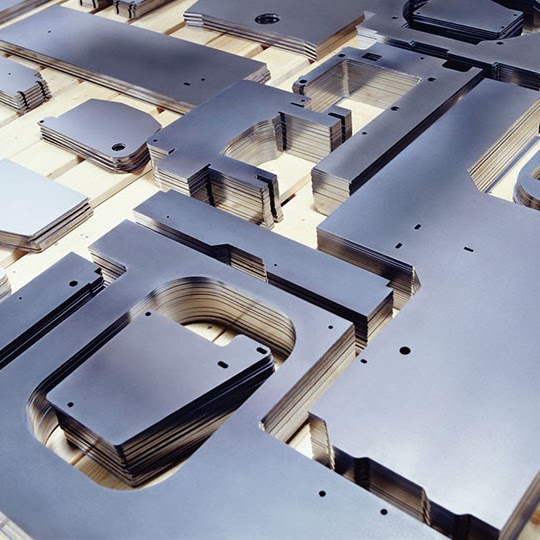

Fiber laser application for metal cutting
